Consultancy ETABS Course. (Hindi Language)
This “Consultancy ETABS Course” is tailored for civil engineers, MTech structural engineers, and career changers seeking to transition from site jobs to office-based roles. Gain practical expertise in structural design using ETABS software and IS cod
Read More
Demo Lectures
Defining Material Properties, Column Properties.

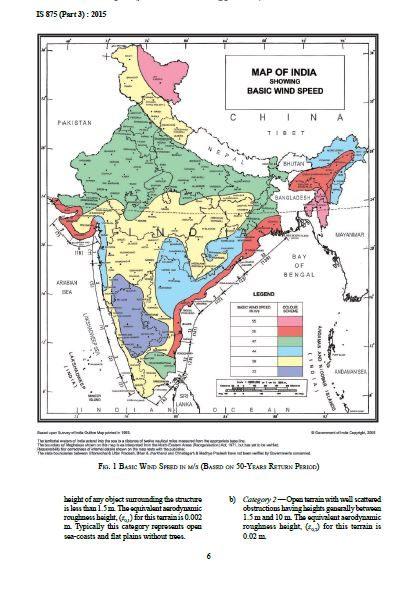

Wind Load Codal Provisions.

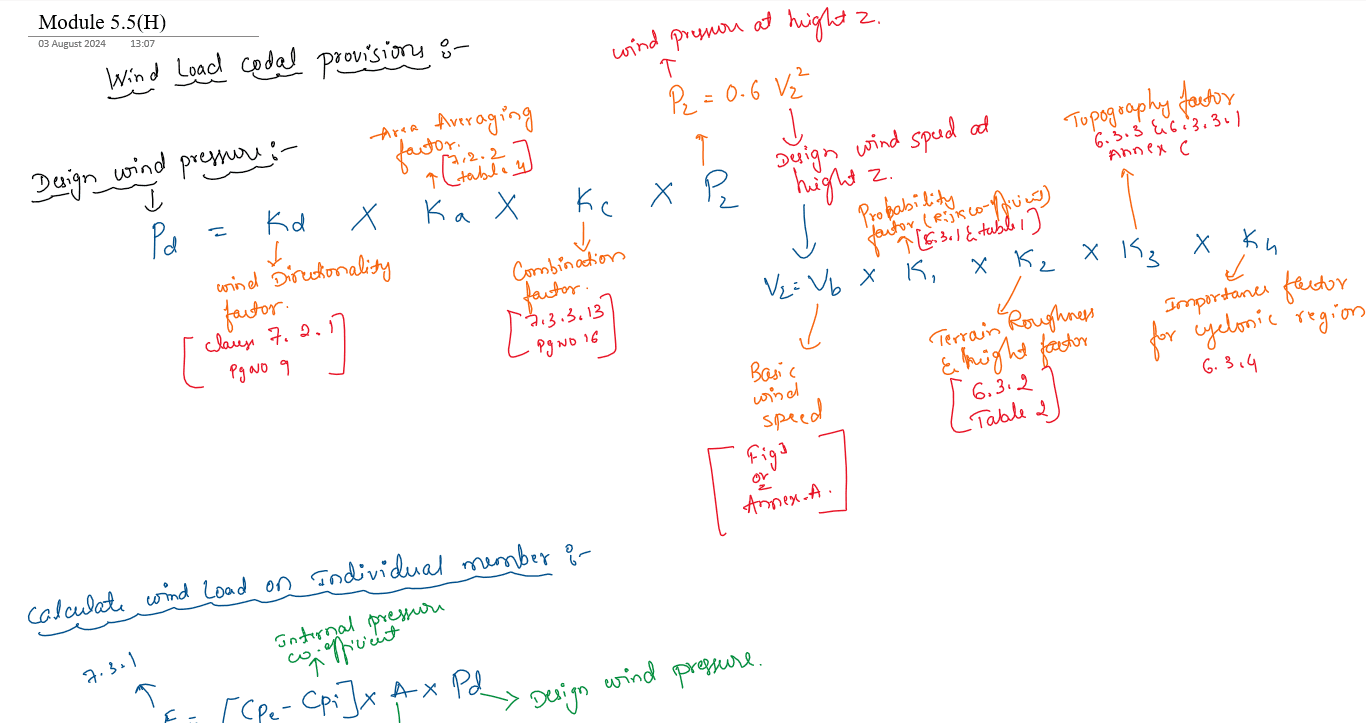

Detail Explanation Of Design Wind Speed & Design Wind Pressure Calculation.

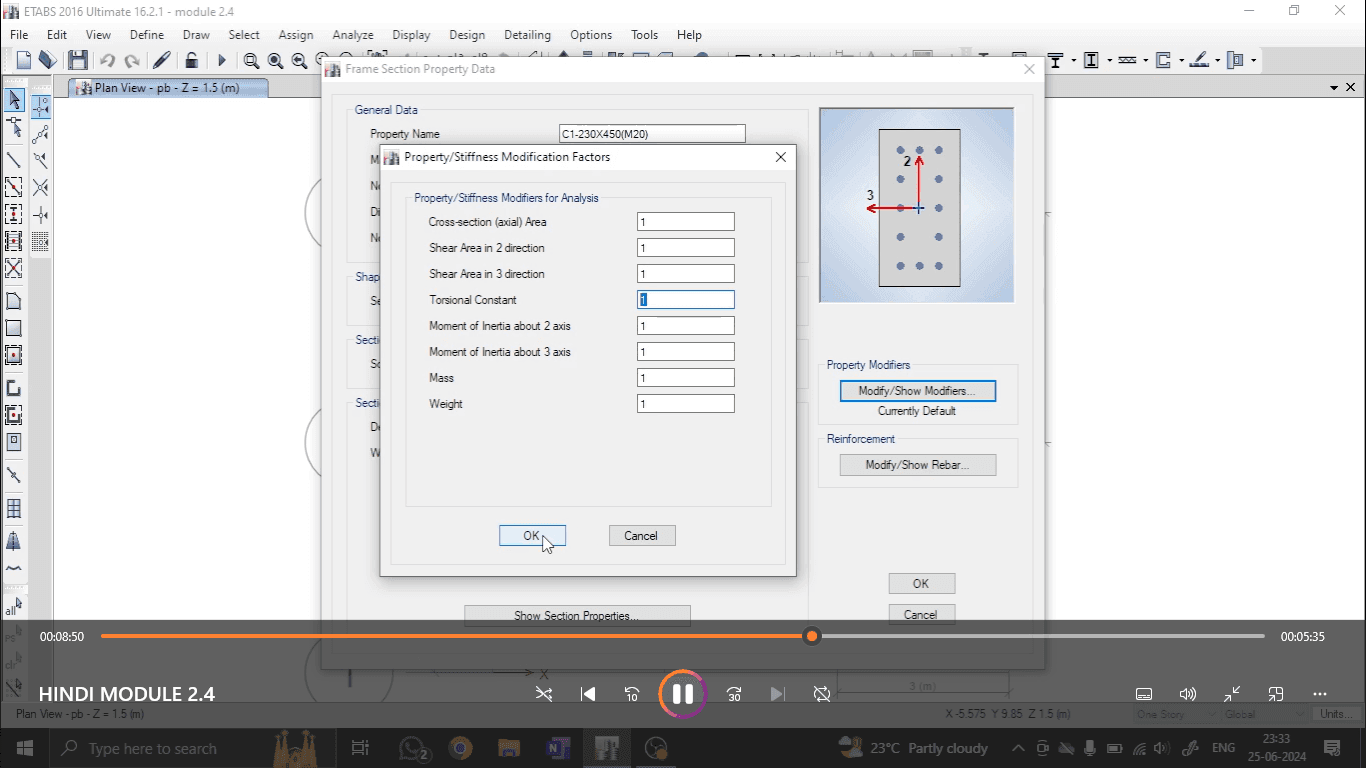

Stiffness Modification
Membrane VS Shell Element
SYLLABUS
Scheme
Tips To Scheme A Building.
Orientation Of Column
Importance Of Orientation Of Column,Thumb Rules For Orientation Of Column For Gravity Load,Minimum Member Sizes In Buildings.
ETABS Defining Basics
1.Initialization Of ETABS & Basics Explained.
2. Explained Basics Like Global Axis, Taskbar, Model Explorer, Graphic Colours, Display Units, Toolbars Settings, Snap Settings,Modify Story Data Explained.
3. Explained Grid System, Dimension Line, Horizon.
4. Defining Material Properties, Column Properties.
5. Defining Beam, Slab, Wall Properties.
Modelling,Assigning Basics
1.Model Initialization,Methods Of Modifying Grid System,Modify Story Data.
2. Defining Column Properties,Assigning Columns Using One Story, All Stories, Similar Stories,Which Method Is Right For Column Orientation,Replicate Columns.
3. Cardinal Point.
4. Column Position & Orientation.
Modelling As Per Our Project
1.Revision Model Initialization, Defining Material Properties, Defining Section Properties, Modeling Grids As Per Our Plan And Stories Editing.
2. Assigning Column As Per Our Plan.
3. Modeling Beams Using Different Methods.
4. Methods Of Modeling Slabs,Check Model.
5. Different Methods Of Selection Of Slabs,Assigning One-way Slab In Etabs,Openings In Slabs,Diaphragm.
6. Snap Option,Fine Grid,Align Joints/Frames/Edges Option Usage,Mirror Option,Reshape Object.
7. Different Methods Of Modeling Stairs.
Checking Our Modelling
1.Controlling Visibility, Set Display Options, Check Model.
2. Significance Of Tolerance Length.
Assigning Restraints
Fix, Pin, Spring Properties.
Importing Plan
Importing Grid Lines From AutoCAD, Importing Templates From Model, Importance Of .e2k File.
IS Codes & Loads
1.How to Download IS Codes With Genuine Method.
2.Applying Dead Load Using IS 875 Part-1.
3. Applying Live Load Using IS 875 Part-2.
4. Applying Wind Load Using IS 875 Part-3.
5. Applying Seismic Load Using IS 1893.
Analysis & Design Of Structure.
1.Analysis Of Modelled Structure.
2. Design Of Modelled Structure.
Hand Calculations
1.Slab Design By Hand Calculations.
2. Beam Design By Hand Calculations.
3. Column Design Explaination.
Validations
Consultant Tip:-How To Validate Our Modelled Structure.
Detailing
1.Detailing Of Slab.
2. Detailing Of Beam.
3. Detailing Of Column.
4. Detailing Of ShearWall.
